Advanced Security Alarm System: Safeguard Your Space with Intelligent Protection

In today’s world, ensuring the safety of homes, offices, and various properties is a top priority. Our Security Alarm System offers a comprehensive and intelligent solution, combining cutting – edge technology with user – friendly design to provide round – the – clock protection. Whether it’s for residential use, commercial buildings, or industrial sites, this system is engineered to detect potential threats promptly and respond effectively.

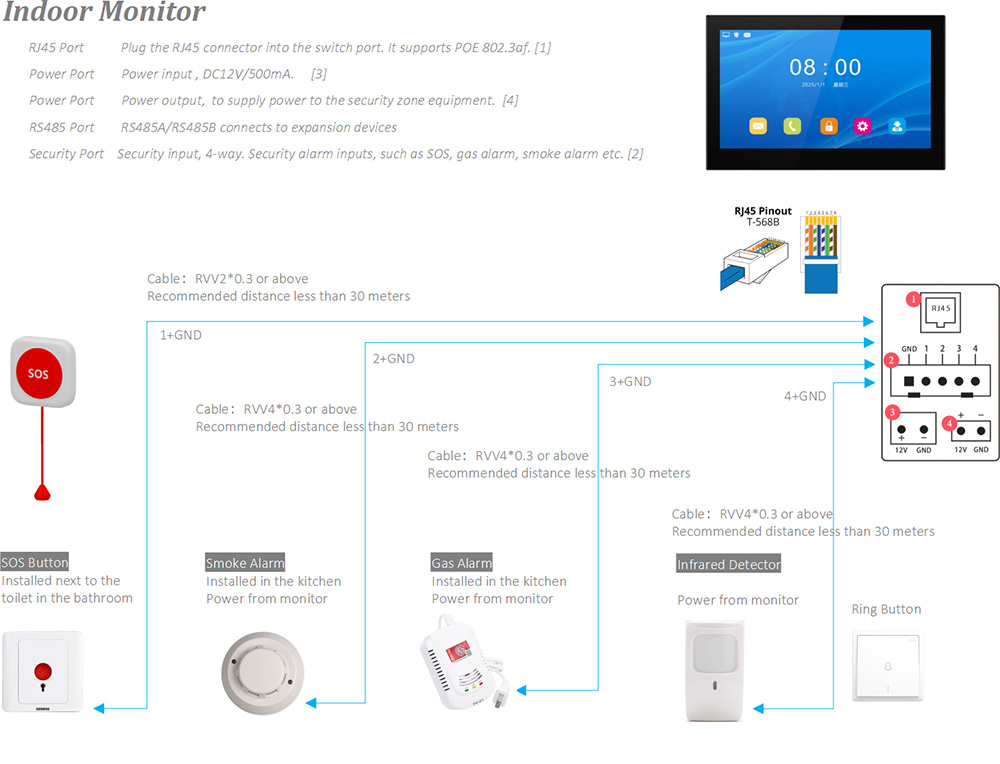

The system’s Indoor Monitor serves as the central hub, equipped with multiple ports for seamless integration. The RJ45 Port supports POE 802.3af, enabling easy network connection by plugging into a switch port. It has power input (DC12V/500mA) and output ports to supply power to security zone equipment. The RS485 Port allows connection to expansion devices, and the Security Port provides 4 – way security alarm inputs for signals like SOS, gas alarms, and smoke alarms. For instance, an SOS Button can be installed near the toilet in the bathroom, a Smoke Alarm in the kitchen (powered by the monitor), a Gas Alarm also in the kitchen (powered by the monitor), and an Infrared Detector in suitable areas (powered by the monitor). All these devices can be connected with recommended cables (such as RVV20.3 or above, RVV40.3 or above) within a 30 – meter distance, ensuring reliable signal transmission.

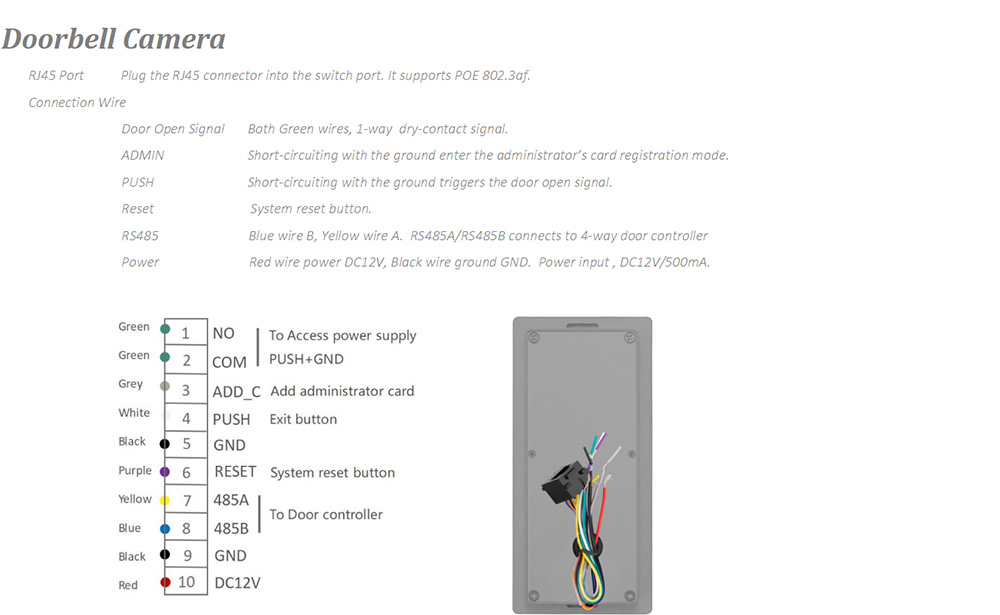

Complementing the Indoor Monitor is the Doorbell Camera, which adds an extra layer of security at the entry point. Its RJ45 Port also supports POE 802.3af for network connection. The connection wires offer various functions: both Green wires provide a 1 – way dry – contact door open signal; short – circuiting ADMIN with the ground enters the administrator’s card registration mode; short – circuiting PUSH with the ground triggers the door open signal; there’s a Reset button for system reset; the RS485 connection (Blue wire B, Yellow wire A) links to a 4 – way door controller; and power is supplied via Red wire (DC12V) and Black wire (ground GND, DC12V/500mA input). With clear wiring definitions (NO, COM, ADD_C, PUSH, GND, RESET, 485A, 485B, DC12V, etc.), the Doorbell Camera ensures smooth communication and control with other system components, enhancing the overall security setup by monitoring and managing access at the door while working in tandem with the indoor security devices. Together, the Indoor Monitor and Doorbell Camera form a robust Security Alarm System that not only detects intrusions and hazards but also manages access efficiently, giving you peace of mind knowing your space is well – protected.
